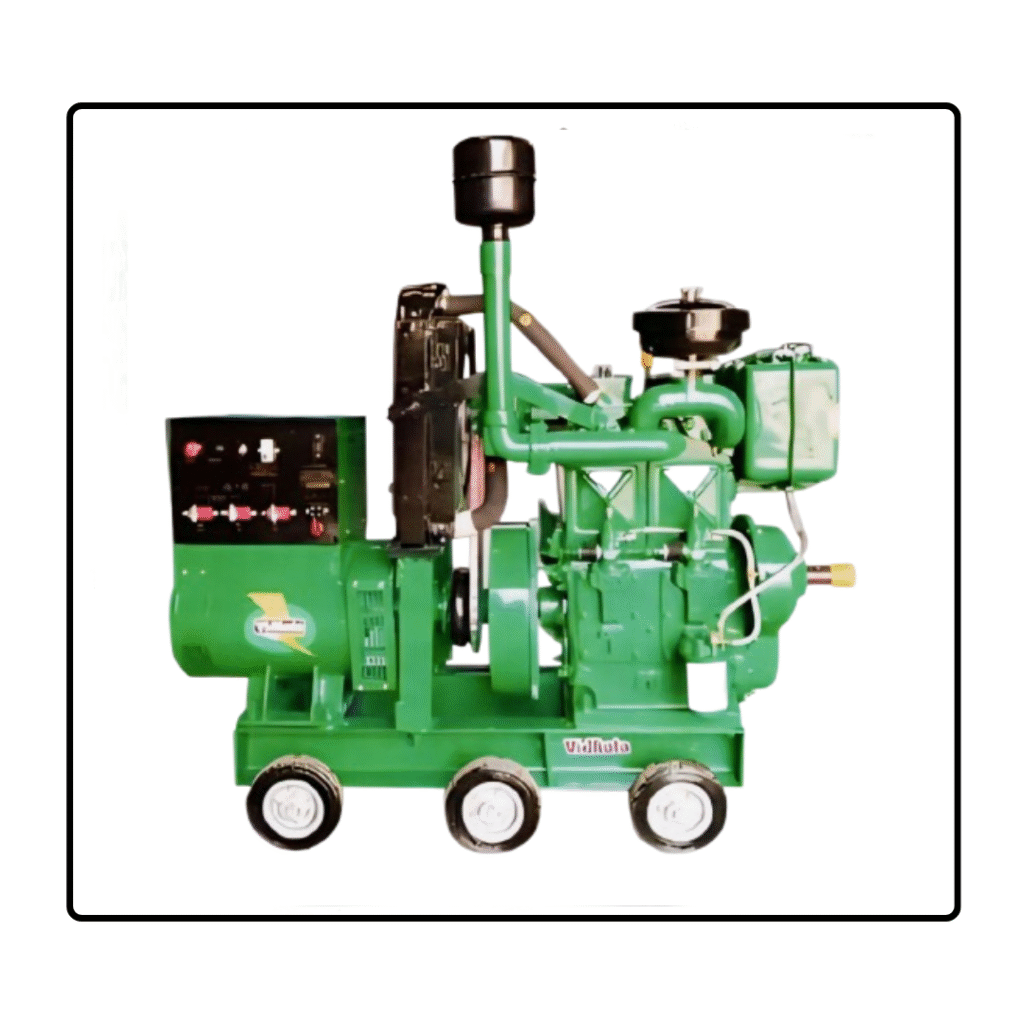

Single Cyl. Welding Generator
250Amp. Water/ Air Cooled
Burns 8 No.- 12 No. Rod
( 2.5mm to 4mm)

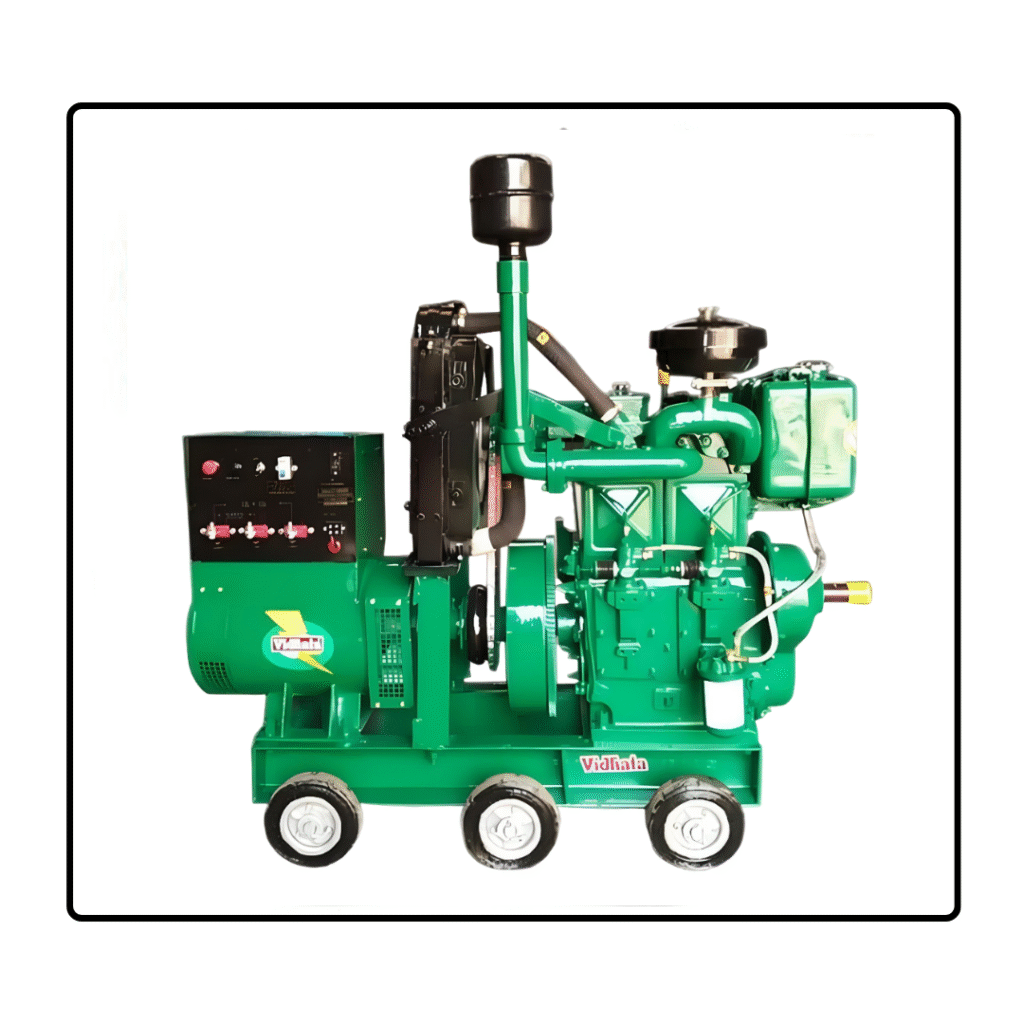

Double Cyl. Welding Generator
400Amp. , Water/ Air Cooled
Burns 6 No.- 12 No. Rod
( 2.5mm to 5mm)
P.T.O Stand with Twin Welding Alternators
250Amp. - 400 Amp.
- 250Amp. – 400 Amp.
- Burns 6 to 12 No. Rod
- Latest Weldart Technology
- Optional Domestic Load of 2KW to 5KW
- Continuous Direct Welding
- High Volts 230 V
- Low Volts 60 V
- Available in water /Air cooled
- Available in Single/ Double Cylinder
- 100% Copper
- Insulation H Class
| AC WELDING GENERATOR | |||||
|---|---|---|---|---|---|
| MODEL | WELING ROD (NO./MM) |
DOMESTIC SUPPLY |
H.P. | CYLINDER | AMP. |
| M3 | 8 to 12 (2.5 to 4.0) | 2.5 KW / 230 V / 60 V | 12 HP | SINGLE | 250 |
| M3-5 | 8 to 12 (2.5 to 4.0) | 5.0 KW / 230 V / 60 V | 12 HP | SINGLE | 300 |
| M3-400 | 6 to 12 (2.5 to 5.0) | 4.0 KW / 230 V / 70 V | 20 HP | DOUBLE | 400 |
| TECHNICAL DATA | |
|---|---|
| WIRE | 100 % Copper |
| INSULATION | H Class |
| ENGINE MAKE | Kirloskar Type |
| RPM | 1500 |
| FUEL | Diesel |
| DIESEL CONS. | 132 gm/hp-hr |
| START | Handle start |
| SELF START | Optional |
| LUB. OIL | 3.5 ltr (SAE 30/40) |
| AC CURRENT WELDING GENERATOR | |||
|---|---|---|---|
| MODEL | WELING ROD (NO./MM) |
DOMESTIC SUPPLY |
AMP. |
| M3 | 8 to 12 (2.5 to 4.0) | 2.5 KW / 230 V | 250 |
| M3-5 | 8 to 12 (2.5 to 4.0) | 5.0 KW / 230 V | 300 |
| M3-400 | 6 to 12 (2.5 to 5.0) | 4.0 KW / 230 V | 400 |
100% COPPER
SKF BEARING
FACTORY PLANT
NEW
WELDART
Technology
