alternators

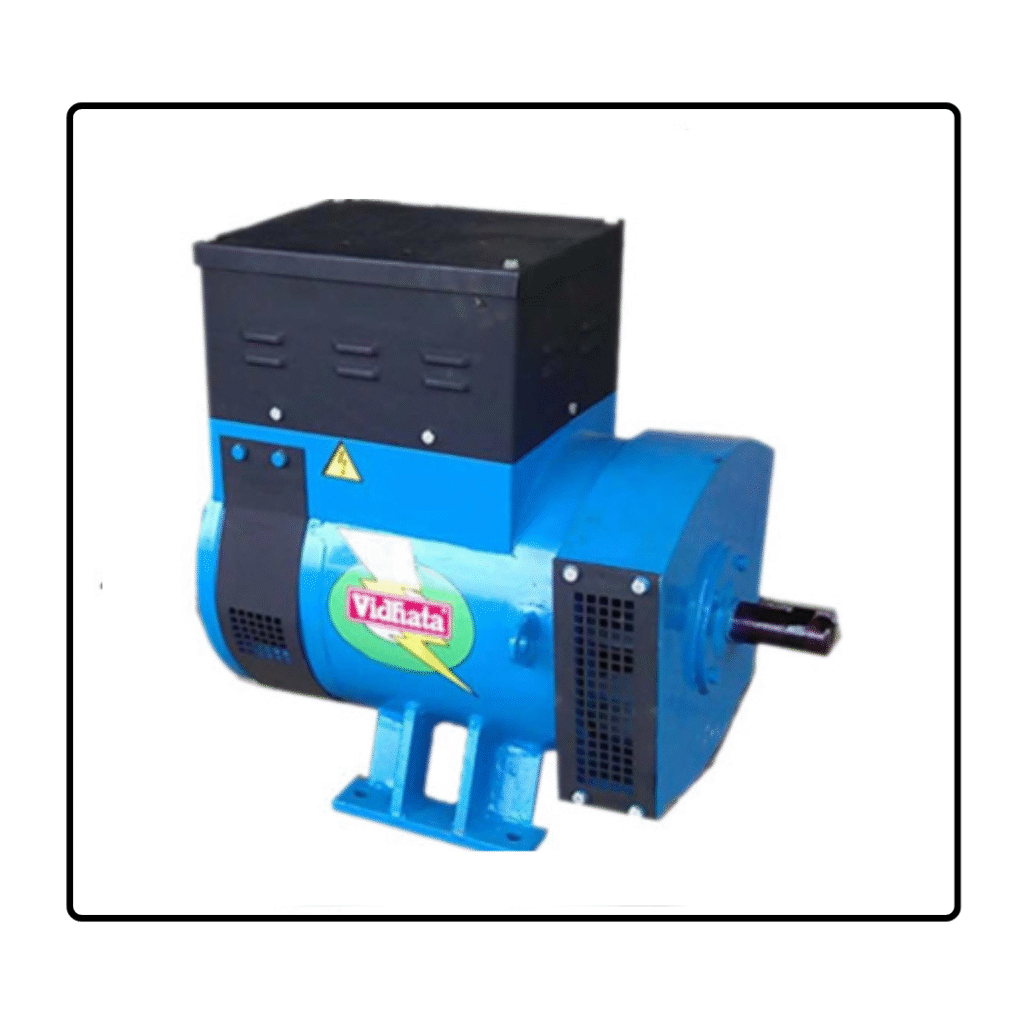

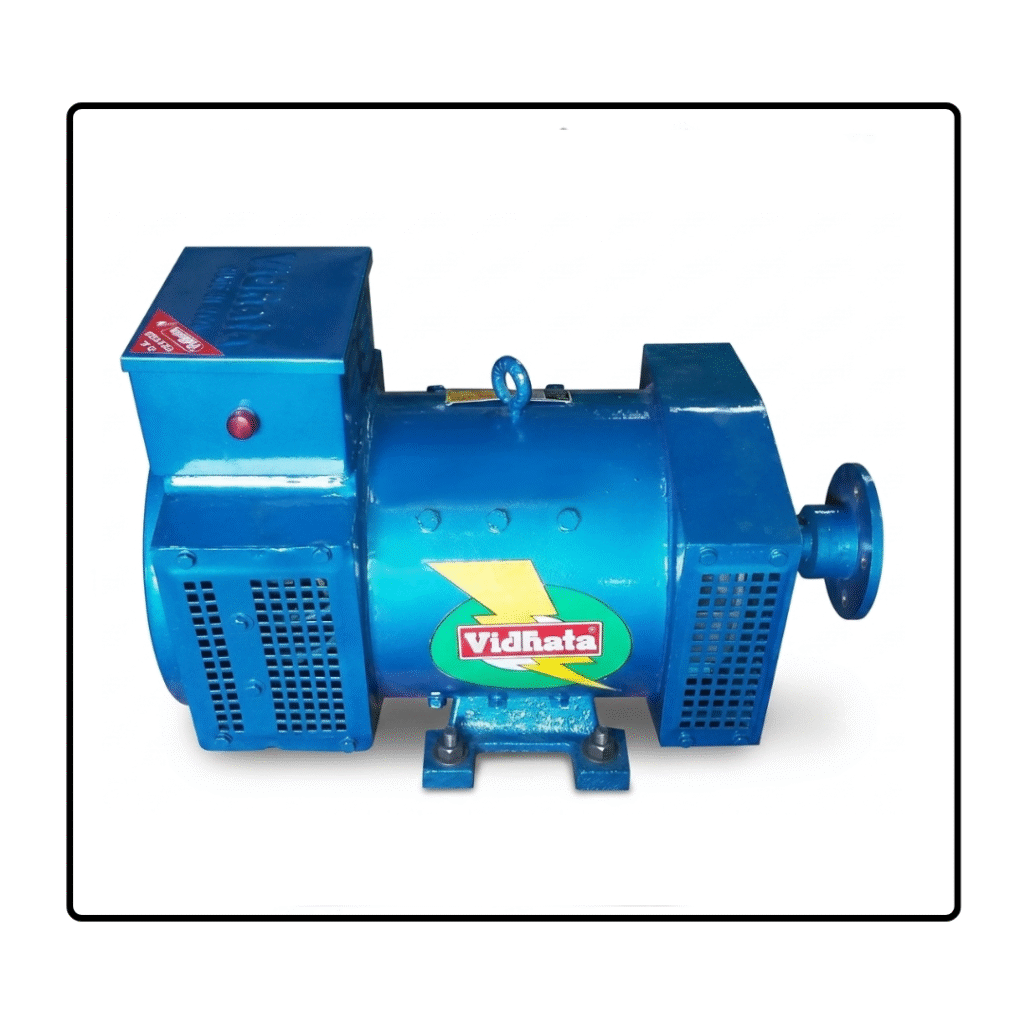

2 KVA-9 KVA
Single / Three Phase 1500 RPM
Resistive / Transformer Model

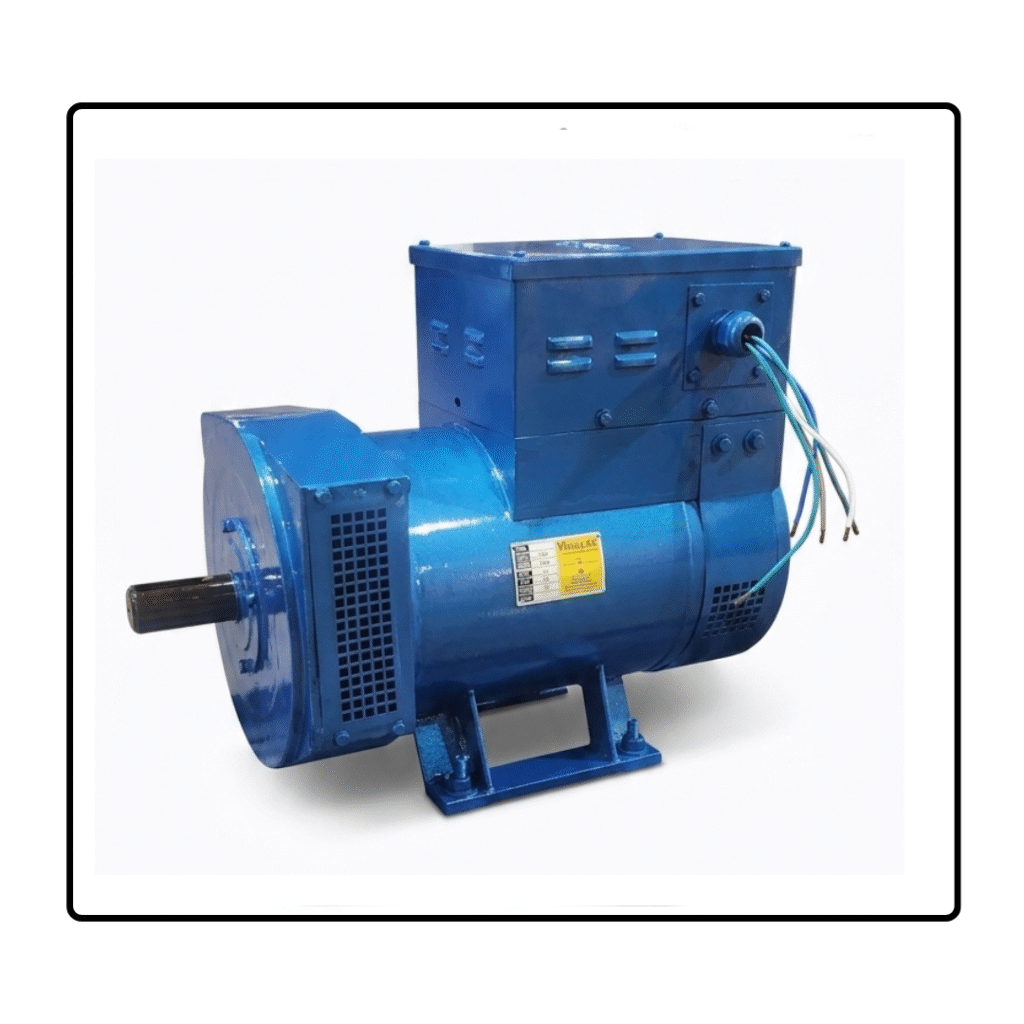

10 KVA-25 KVA
Single / Three Phase 1500 RPM
Semi Brushless Model

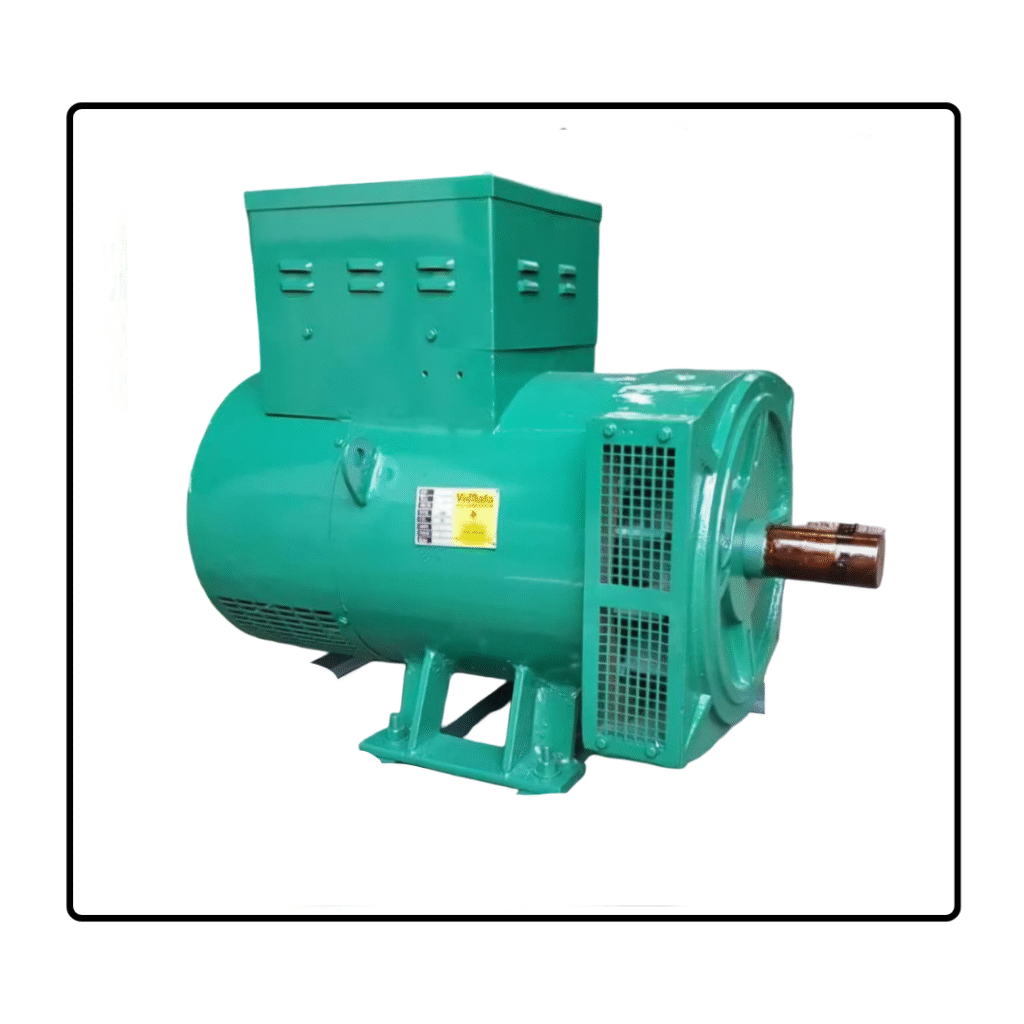

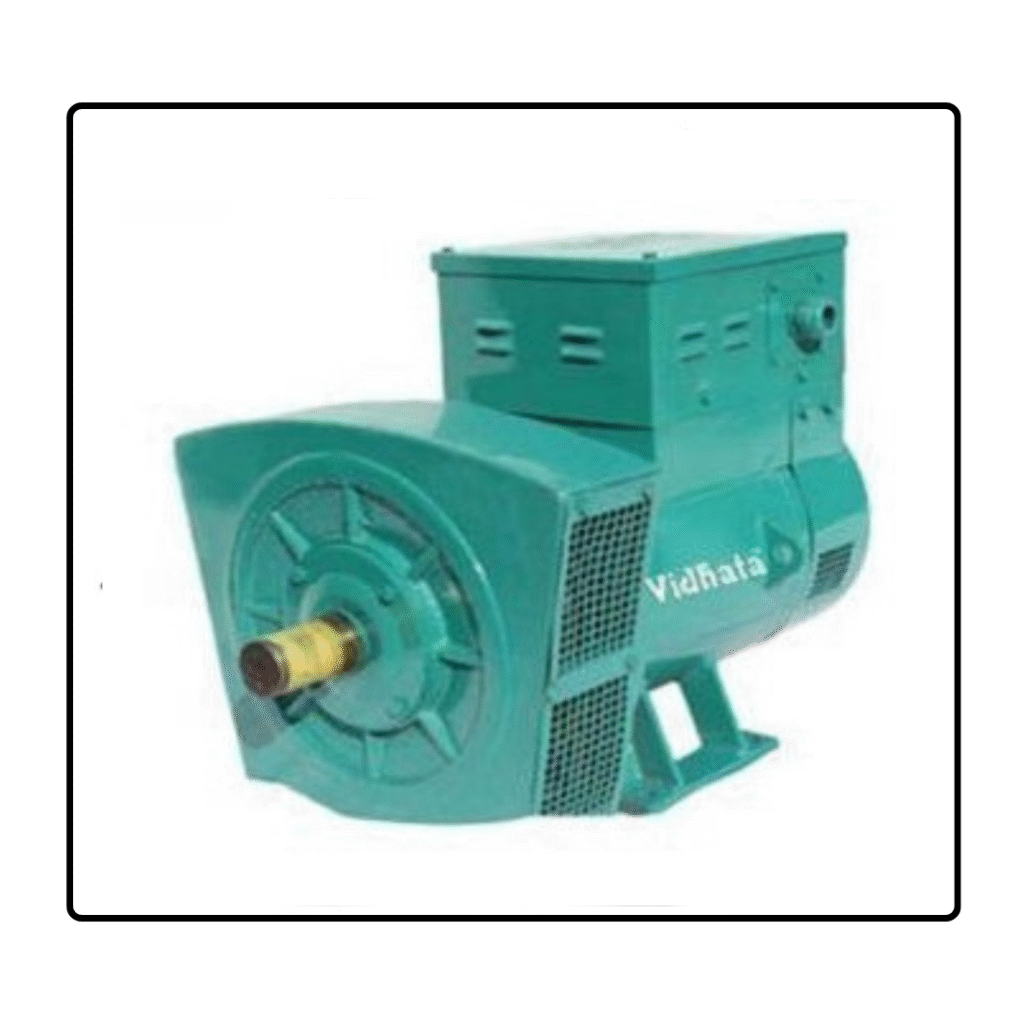

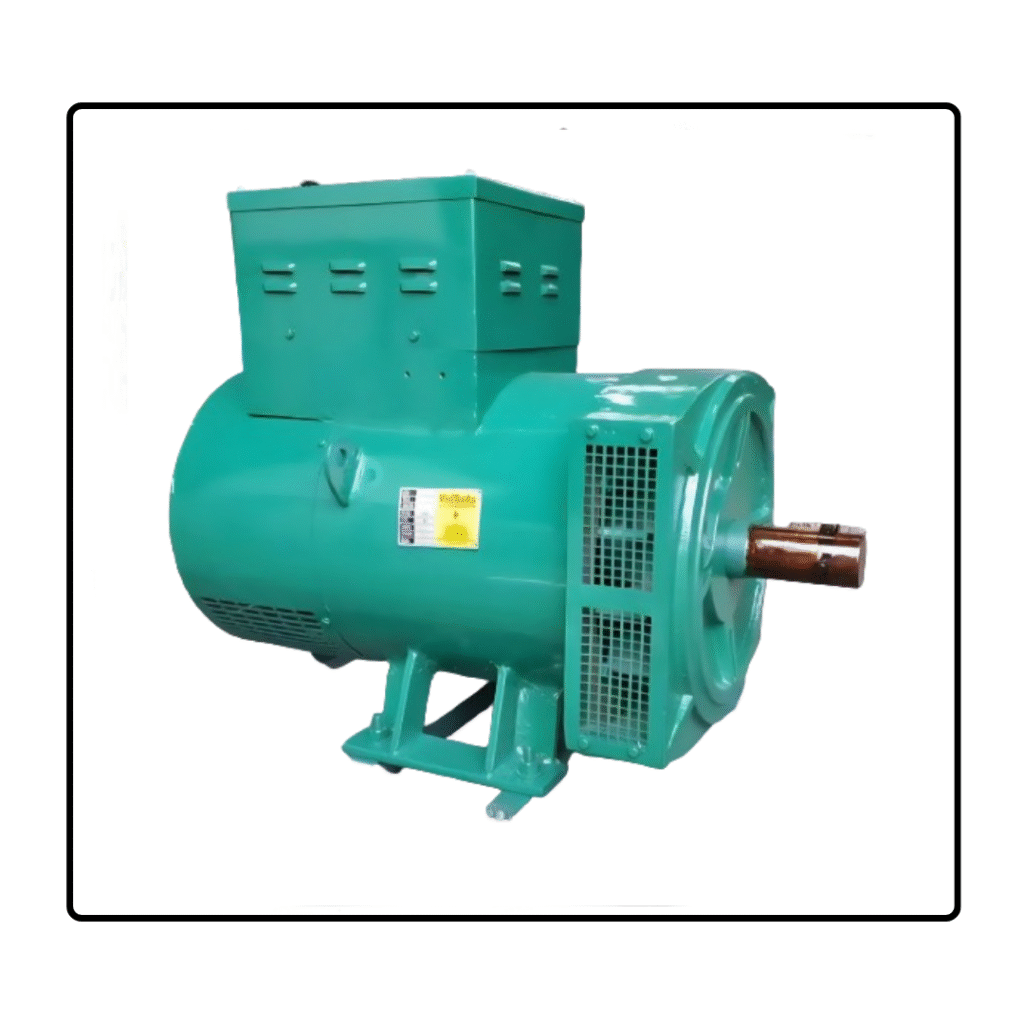

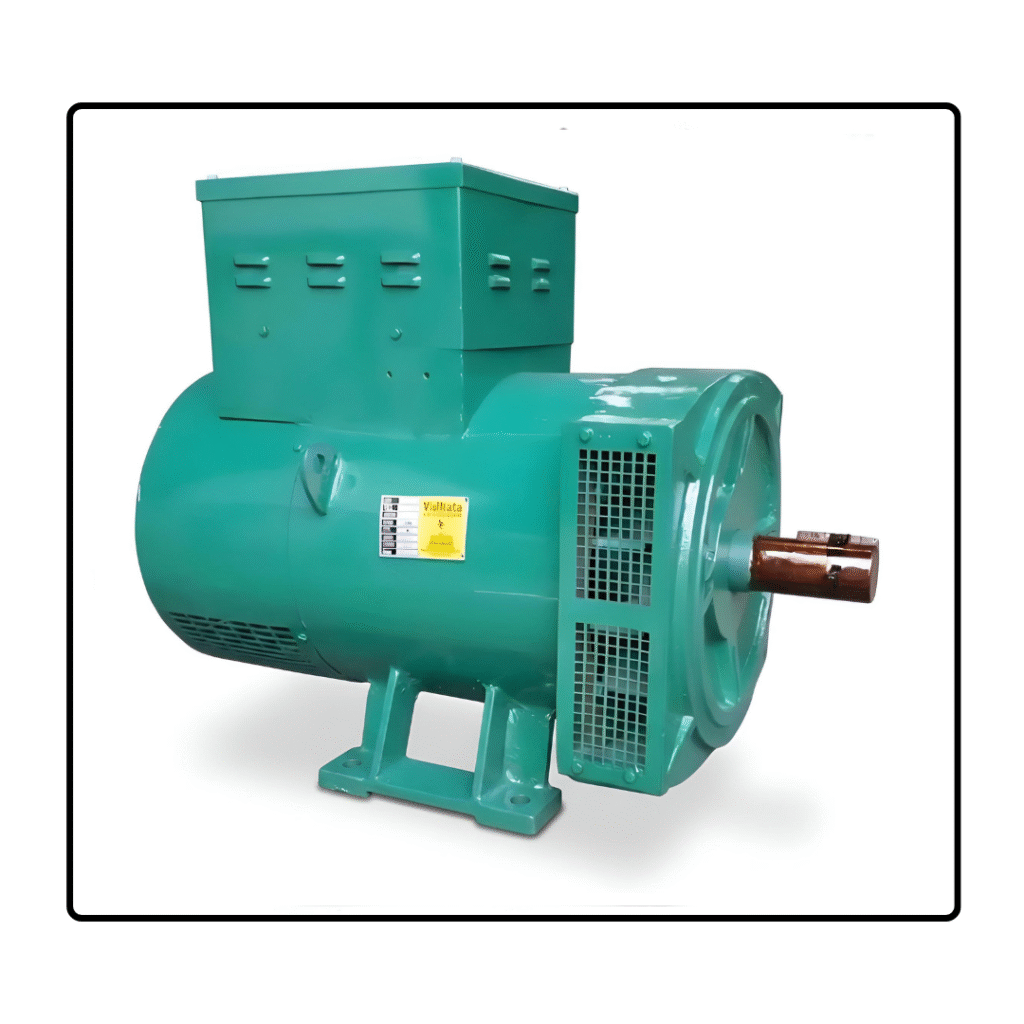

40 KVA-100 KVA
Single / Three Phase 1500 RPM
Semi Brushless Model

  • Vidhata Alternators are made in MS Body (10 times better than Alumium body).
  • We use 100% Copper(Insulation H Class) of BIC or Shrumick Co. only which prevents from burning.
  • We use 100% genuine SKF or NBC bearing only which prevents loss of failures in Alternators.
SINGLE PHASE, 230V, 50 Hz, 1.0 Pf, 1500 RPM
Technical Specification Required Engine (H.P.)
KVA KW Suitable Load (H.P.) Amp.
2 2 0.5 8 3.5
3 3 1 12 5
4 4 1.5 16 6.5
5 5 2.5 21 8
6 6 3 24 10
7 7 4 28 12
9 9 5 36 14
10 10 6 40 15
12 12 7 48 20
15 15 10 60 24
20 20 12 80 28
25 25 15 100 35
30 30 20 120 42
THREE PHASE, 415V, 50 Hz, 0.8 Pf, 1500 RPM
Technical Specification Required Engine (H.P.)
KVA KW Suitable Load Amp.
6.25 5 3 8 8
7.5 6 4.5 10 10
8.75 7 5 12 12
10 8 6 14 14
12.5 10 7.5 17.5 15
15 12 10 21 20
20 16 12.5 28 28
25 20 15 35 32
30 24 20 42 40
35 28 22.5 49 50
40 32 25 54 55
50 40 35 66 72
62.5 50 42 84 95
75 60 52 97.5 112
82.5 66 60 107 125
100 80 75 130 142

100% COPPER

SKF BEARING

FACTORY PLANT

PRODUCT SPECIALITIES

Construction :

  • VIDHATA A.C Generators are available in rotating field, self excited and self regulated in Brushless and compounding system.
  • The stator frame is of rolled steel with welded feet.
  • Rotor core is made up of cold rolled sheets held under pressure on the grounded steel shaft.
  • End shields are of cast iron construction.
  • Stator is skewed for better waveform.
  • Continuous damper winding fitted on poles.

Electrical performance :

  • Bridge rectifier.
  • Good overload characteristic.
  • Can generate electricity in both directions.
  • Voltage regulation within +-5% for compounding system and +-1% in Brushless version.
  • Voltage adjustment range is +-5% of nominal voltage.
  • Epoxy gel coating on windings after varnish for resistance against moisture.
  • Good motor starting capability, the compounding system giving 2.5 to 3 times of full load capability for short duration.
  • Positive voltages build up from residual magnetism.
  • Sustained short circuit current in the order of 3 times of full load current.
  • Voltage dips on application on full load 0.8pf on the order of 10% to 15%.

Standard Ratings :

  • All ratings are based on 40degree Celsius ambient, 1000m above sea level.

Enclosure :

  • Screen protected drip proof IP 23 as per IS 4691.
