Pump Sets

black simple dark photocentric motivation quote instagram post (26)

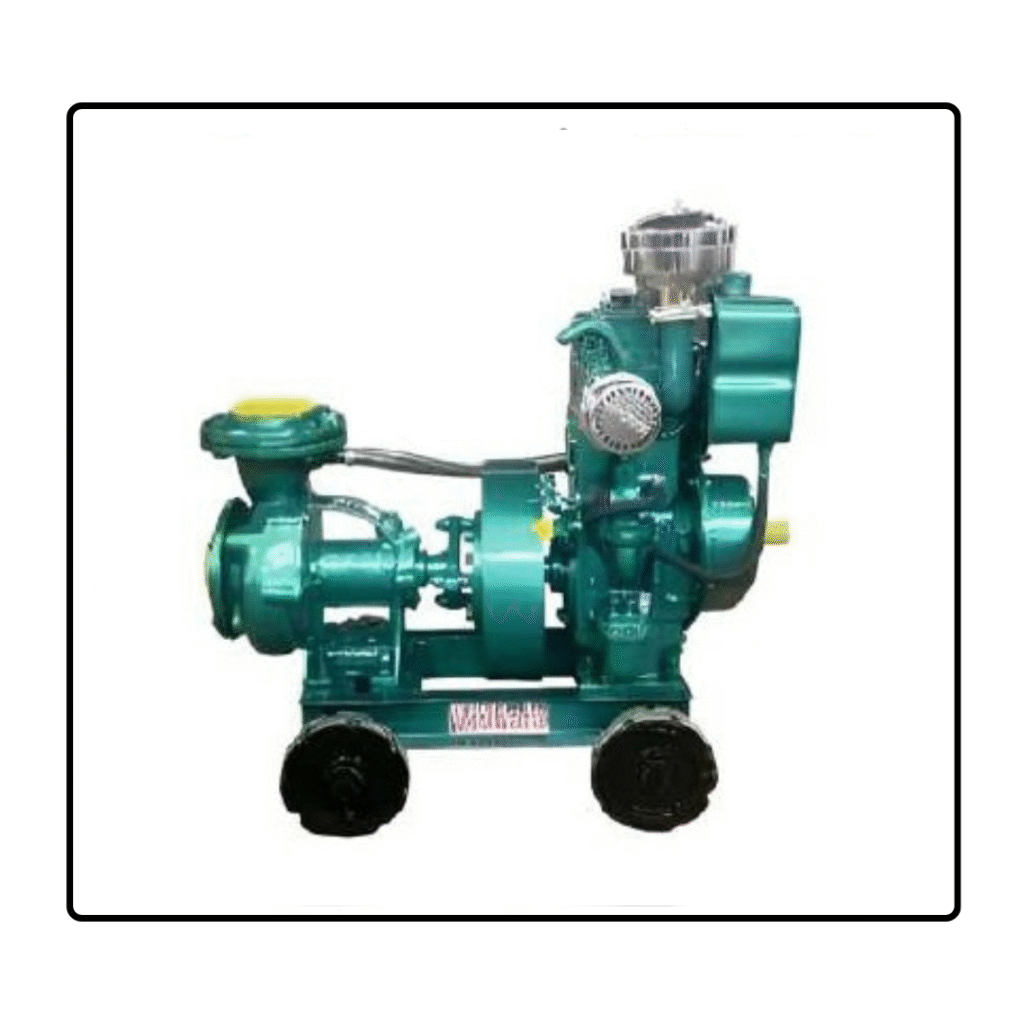

5 H.P Pumpset (3x2.5, 4x4) 80mm / 85mm Bore Speed 1500-2200 R.P.M

black simple dark photocentric motivation quote instagram post (22)

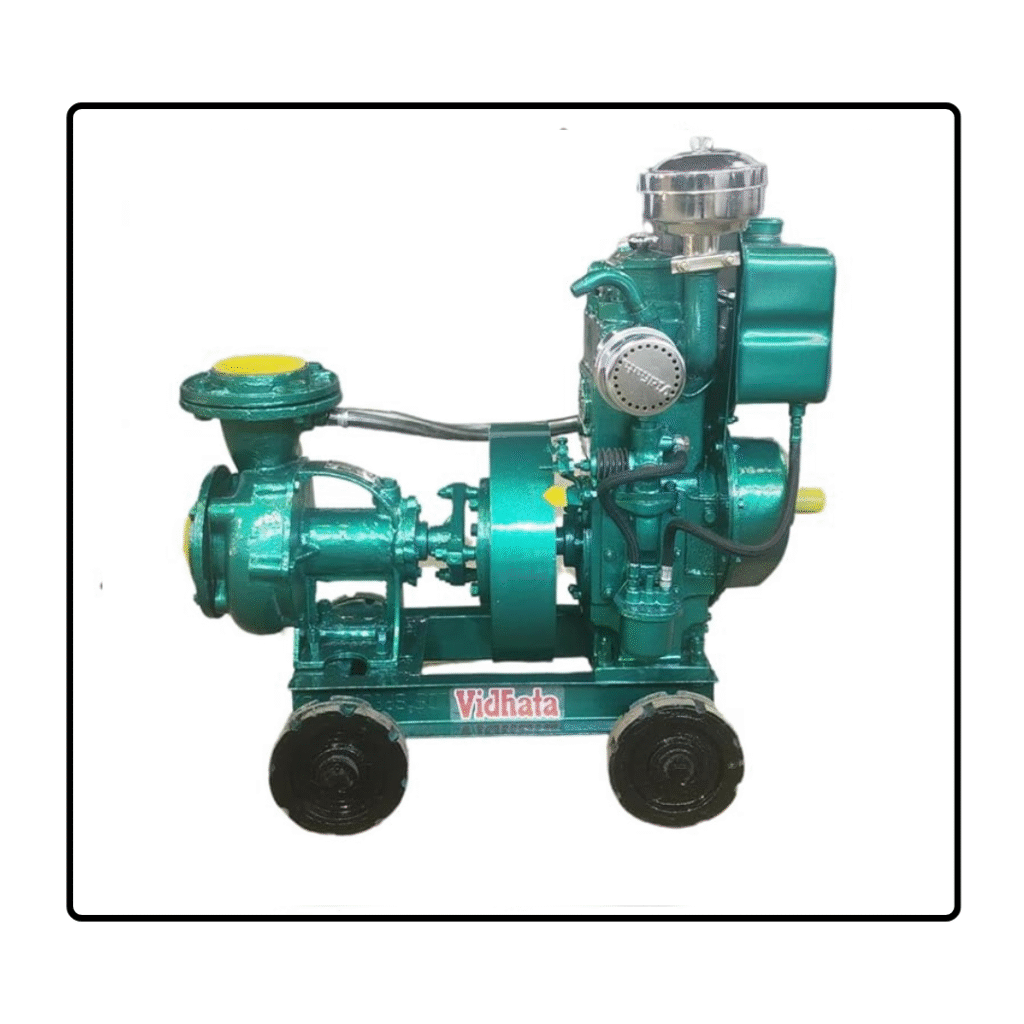

6.5H.P - 15H.P (3x3, 4x4, 6x6) Single cylinder, High Head water / Air Cooled

black simple dark photocentric motivation quote instagram post (27)

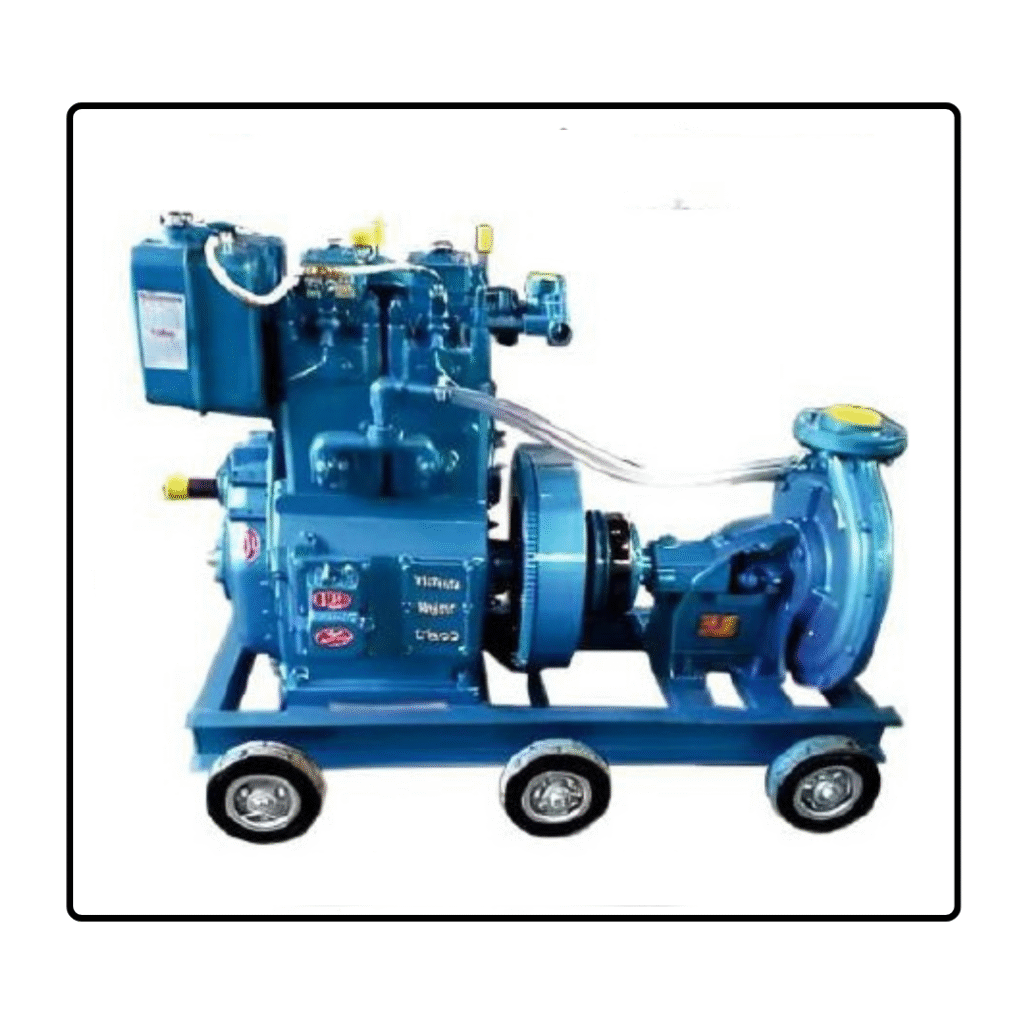

20H.P - 284H.P (4x4, 6x6) Double cylinder,High Head water / Air Cooled

black simple dark photocentric motivation quote instagram post (28)

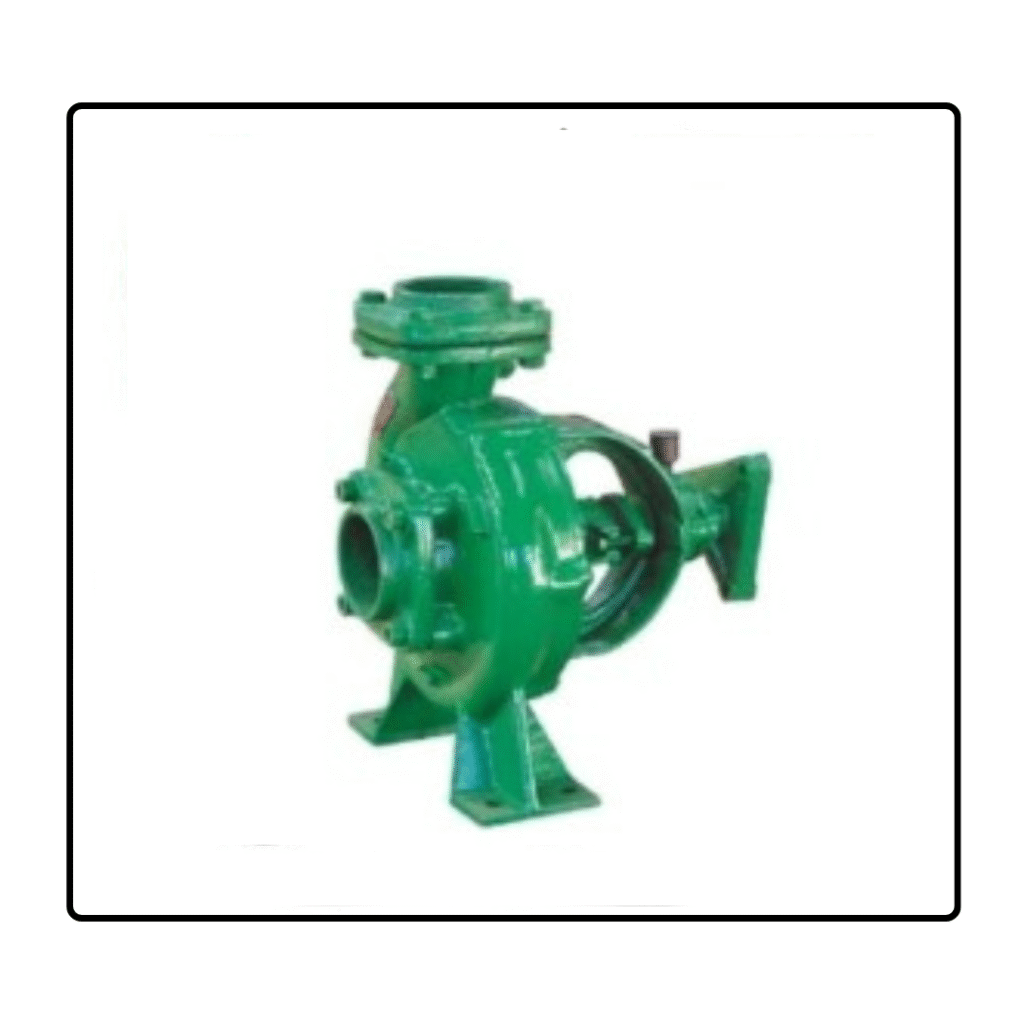

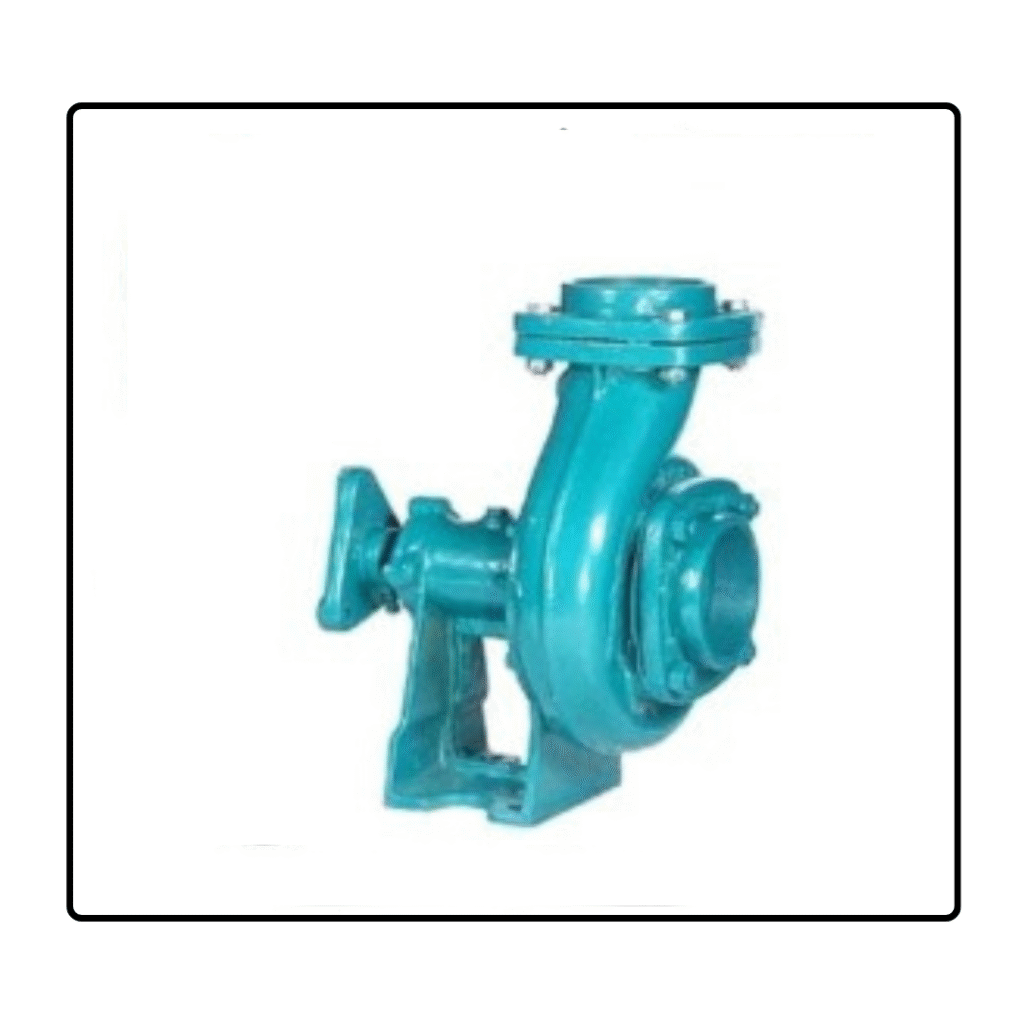

Glan Type Pump (2", 3", 4")

black simple dark photocentric motivation quote instagram post (29)

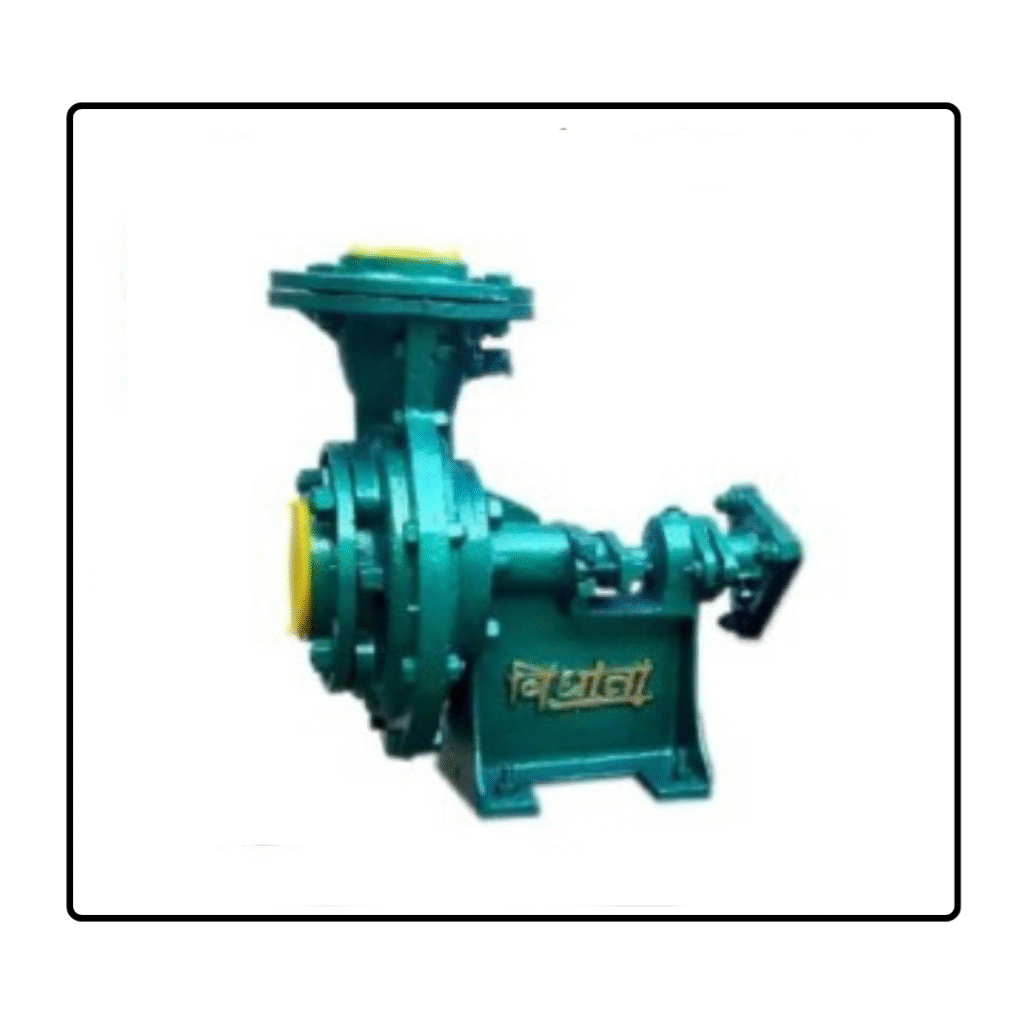

T.R.B Oil Seal Pump (2", 3", 4")

black simple dark photocentric motivation quote instagram post (30)

High Head Glan (3", 4", 6")

TECHNICAL DESCRIPTION :

  • Governing Class B1
  • RPM = 1500
  • Water Cooled / Air Cooled
  • Fuel Consumption = 184 gm/hp-hr

More Information

DIESEL
ENGINE
(H.P)		 R.P.M BORE
(mm)		 PUMP SIZE
(mm) / Oil Seal		 HEAD (Mtr.) /
HEAD RANGE		 DISCHARGE
(L.p.s) /
DISCHARGE RANGE		 NET WEIGHT
With Trolley
(Kg)
5 (Jal) 2200 80 80 × 65 22 (18-25) 10 (13-8) 100
5 Comet (H.D) 1500 85 80 × 65 10 (8.5-11) 14 (16-12) 140
5 (kir) 1500 80 80 × 65 15 (12.5-16) 15 (18-12.5) 200
6.5 1500 85 80 × 65 15 (12.5-16) 16.5 (19-13) 205
8 1500 87.5 80 × 65 11 (9.5-12) 40 (48-30) 250
10 1500 95 100 × 100 16 (13.5-17) 22 (32-19) 260
12 1500 102 150 × 150 12 (10-13) 45 (55-40) 280
14 1500 114.3 150 × 150 15 (12-16) 48 (56-40) 330
15 800-1800 114.3 150 × 150 15 (12-16) 48 (56-41) 360
20 1500 95 150 × 150 25 (20-26) 50 (60-43) 460
24 1500 102 150 × 150 26 (21-27) 52 (61-44) 470
28 1500 114.3 150 × 150 26 (21-27) 54 (63-46) 510
dieselengcomp4

PRODUCT SPECIALITIES:

  • Excellence efficiency – High discharge rate consuming less diesel.
  • Extremely simple construction – Easy for maintenance.
  • Shaft is of high carbon steel ground accurately and ample size can transmit maximum power without vibrations.
  • Bearing housing – Sturdy and robust construction to give long continuous service – fitted with bronze bearing bush and ball bearing.
  • Highest suction lift – can suck water from depths as low as 9mtrs.
  • I components of higher grade – casting for better strength.
  • Central delivery – No air release cock required – no need to go down in the well to release air.
  • No vibration.
  • Heavy (Flywheel/ Head/ Body/ Block).
  • No leakage.
  • 100% original spares.
  • Fitting is done through compressors.
  • Testing (3-4hrs.).
  • Long Life.
  • Spare parts are available all throughout the world.
